Payter – Built-in payment terminal

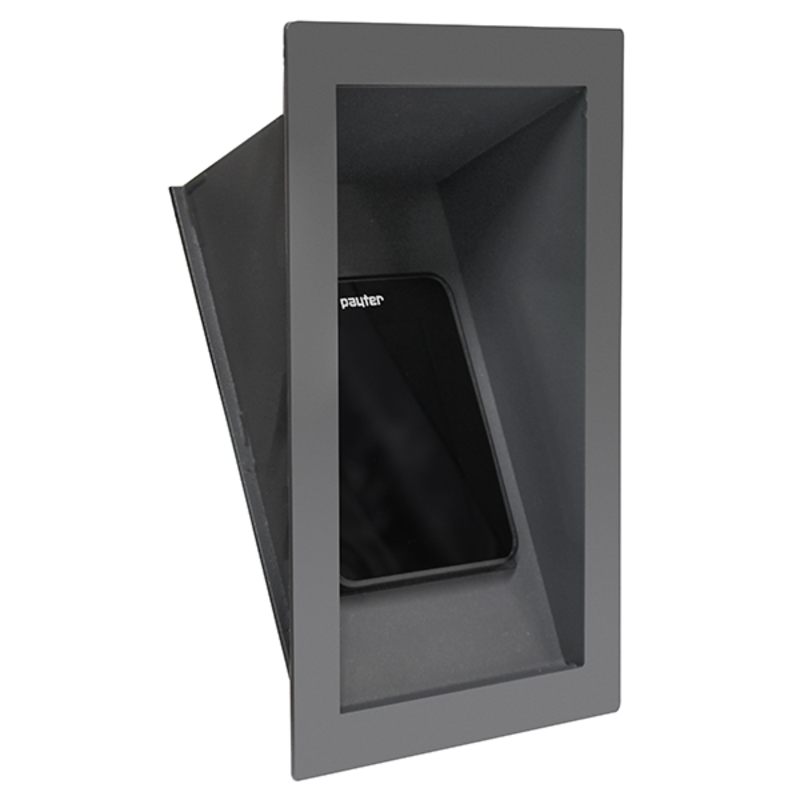

Contactless Built-in Payment Terminal

The Payter contactless payment unit is a reliable and compact payment solution that integrates seamlessly into kiosks, pedestals, and other self service applications. This model ensures easy installation of the Payter unit and offers an elegant solution for locations where speed, reliability, and flexibility are essential, such as parking lots, access control points, or vending solutions.

The payment unit supports all common contactless payment methods, including NFC, Mifare, and Desfire. It also features a clear 3.5 inch color touchscreen, an integrated barcode reader, and modern connectivity options such as Wi Fi, Bluetooth, and Ethernet.


Technical Specifications

Payment methods: NFC, Mifare, Desfire (EV2/3)
Display: 3.5” IPS LCD, capacitive touchscreen
Connectivity: WiFi, Bluetooth, Ethernet, USB
Housing: 304 stainless steel, powder coating RAL7016
Ingress protection: IP65 | Impact resistance: IK09
Certifications: CE, FCC, RoHS, WEEE, EMVCo, MasterCard, VISA, PCI

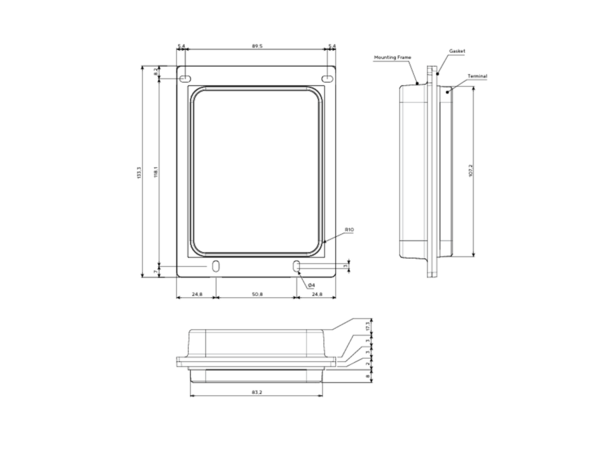

Dimensions: 100 x 133.5 x 31.5 mm
